Fiberscopes | Small Diameter Fiberscopes

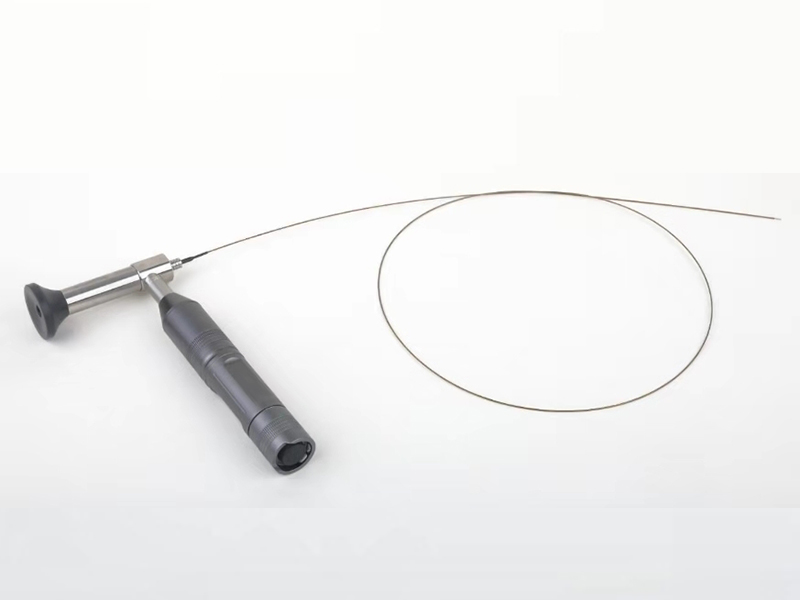

ES078 Series Fiber Endoscope

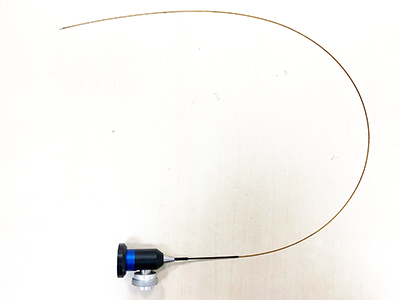

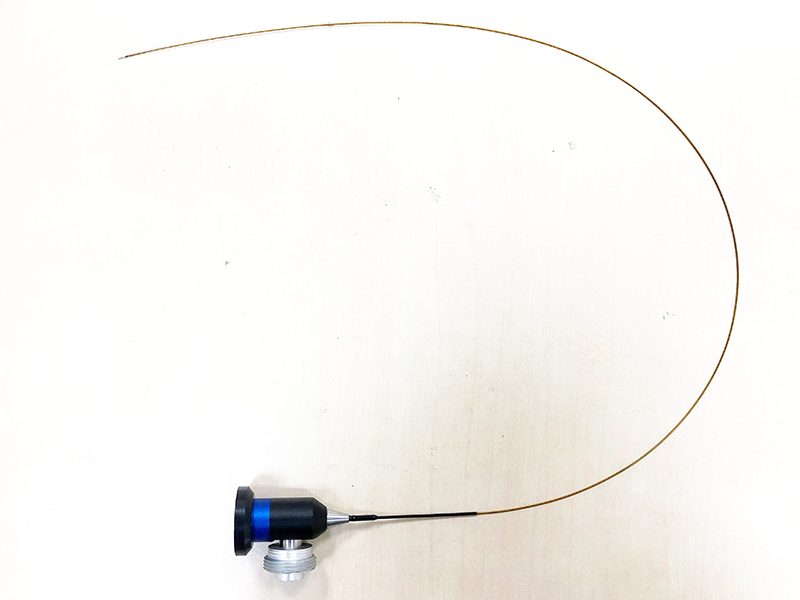

Lens

The diameter is only 0.78mm, 0.5mm and the standard length is 600mm. The length can be customized according to your requirements.
Camera depth of field 2~15mm; lens field angle of 90°; eyepiece magnification 65 times; up to 20,000 pixels
Polytetrafluoroethylene flexible hose; optical fiber transmission
Rear portable LED flashlight with adjustable brightness

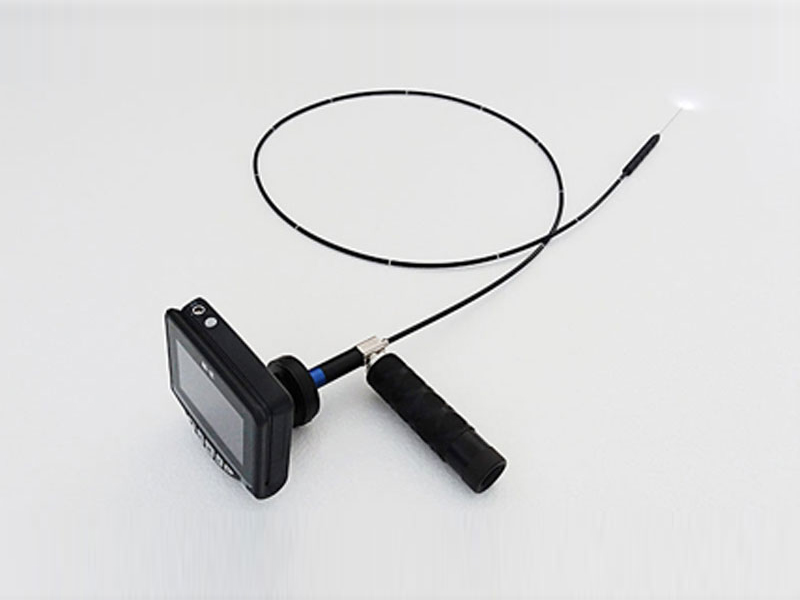

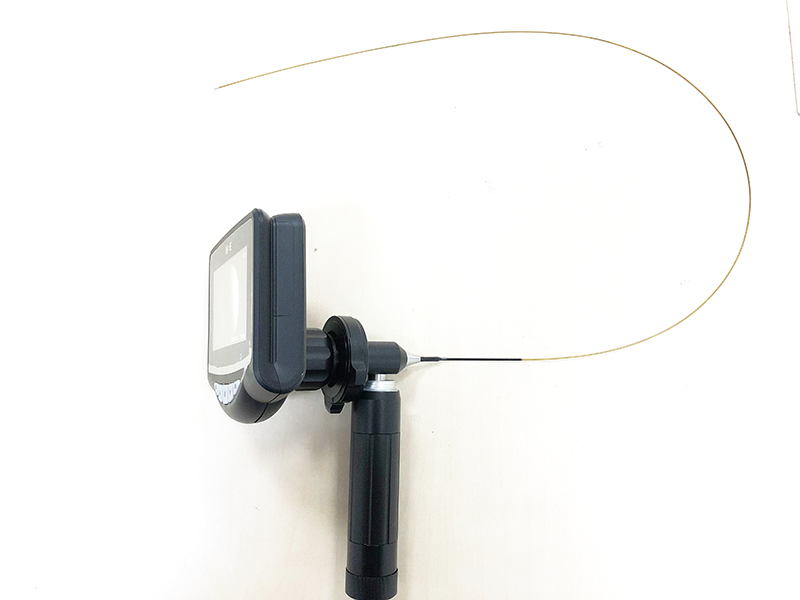

Portable display system

3.5-inch HD LCD screen; You can also customize various screen sizes according to your requirements.
2 mega-pixel high-definition micro CCD image sensor
1080P video resolution, clearly displaying internal inspection
Optical adapter 32x magnification, 32G memory, controllable photo and video recording storage

Specifications

Outer diameter	Length	Pixel	Field of view (FOV)	Depth of field (DOF)	View angle
Ø0.5mm	600mm or others	10,000 pixels	90°	2-15mm	Forward view 0°
Ø0.78mm	600mm or others	10,000 or 20,000 pixels	90°	2-15mm	Forward view 0°
Optional	Handheld flashlight, Desktop light source, Optical C-Mount, 2-megapixel HD industrial camera, 3.5/10.1-inch HD endoscope screen
